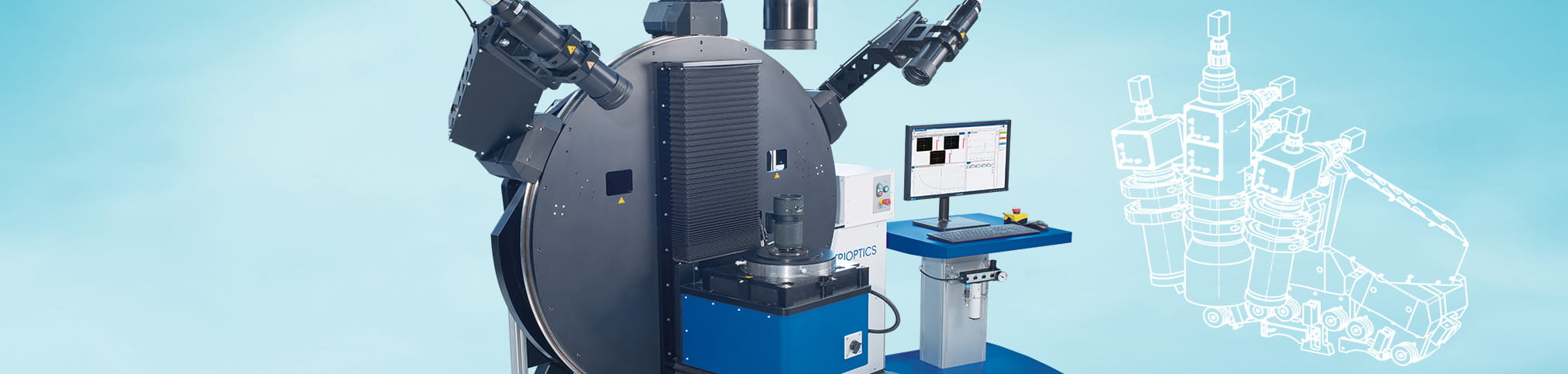

ImageMaster® Cine
Testing and fine-tuning of the image quality of large lenses and lens systems
High-quality lenses from the photo and film industry need to meet the highest demands for image quality and deliver demonstrably superior optical performance. The MTF measurement has established itself as the recognized measurement method for qualitatively assessing the optical quality of lenses. With its ImageMaster® product range, TRIOPTICS is the market leader for MTF measuring instruments for high-precision measurement of image quality.
Highly precise and in realtime
With its ImageMaster® product range, TRIOPTICS is the market leader for MTF measuring instruments for high-precision measurement of image quality. ImageMaster® Cine was specially developed for the inspection and alignment of sophisticated lenses. The simultaneous measurement with real-time MTF values allows fast fine tuning of the lens components for optimizing the image quality.
Flexible
The complete ImageMaster® Cine portfolio encompasses various solutions for different customer requirements for the fast MTF function testing and alignment of optical elements of cine lenses.
Quality control
Lens manufacturers use these systems for quality control or final adjustment during production. In addition to fast quality and functional testing, optical elements can be aligned. Rental companies benefit from the ability to quickly inspect the lenses upon their return.
Products

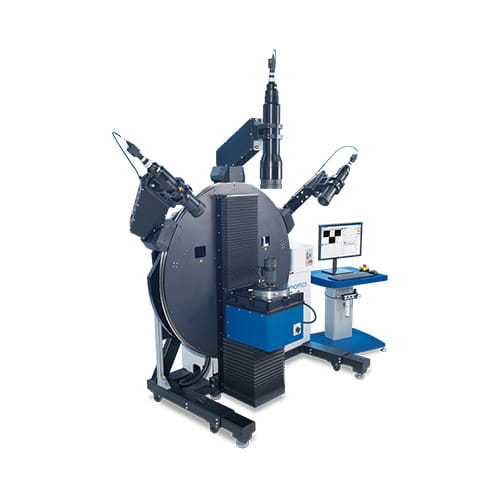

ImageMaster® Cine Flex
Measurement of image quality and adjustment of high-quality photo and film lenses
Manufacturers of sophisticated photo and film lenses often test a large number of lenses of different sizes within a short period of time and need a highly accurate measuring device that can be used flexibly for different lens sizes. With its automated measuring sequence and the possibility of quickly changing between different lens sizes, ImageMaster® Cine Flex is the perfect solution for this requirement.
- Fast quality and functional testing as well as alignment of optical elements
- Flexible change between different sample sizes
- Measurements can be performed on-axis and off-axis
- Simultaneous measurement of two off-axis positions with live MTF values allows for quick adjustment of lens elements to optimize the lenses optical performance
More information
- Adjustment for different sample heights with motorized stage
- Measurement with sample rotation (manually or motorized)
- Performance check on multiple field positions: 2 to 3 motorized telescopes
- Off-axis angles up to 52.5°
- Horizontal and vertical measurement set up: allows identification of loose lenses

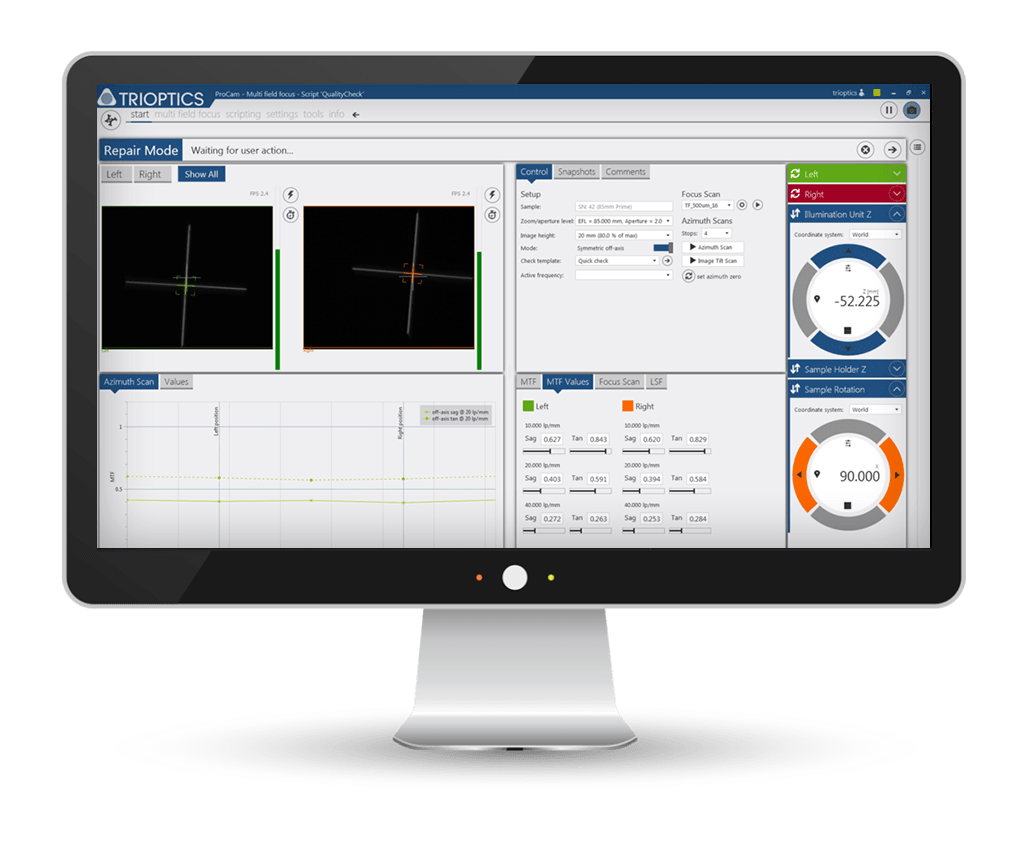

- Software with lens repair function

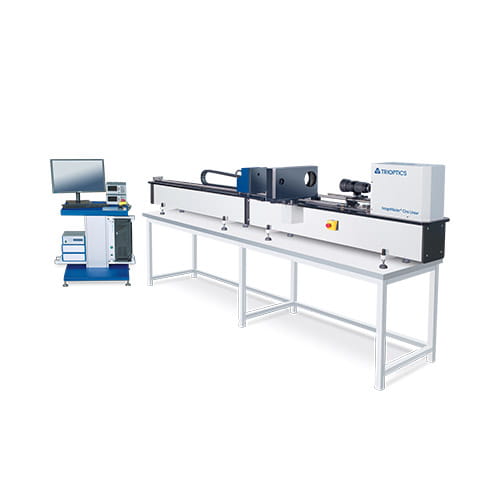

ImageMaster® Cine Linear
Quality testing of photo and cine objective lenses
ImageMaster® Cine Linear ensures fast and economical quality inspections of photographic and film lenses and is particularly suitable for incoming inspection in the rental business.
- Horizontal measurement setup for incoming quality control
- On-axis finite and infinite measurements
- EFL as well as FFL measurements
More information
- Two collimators for quick change of EFL
- Different filters and reticles
- Modulable LED (RGBW) light source
- Option: Optical low pass filter
Downloads

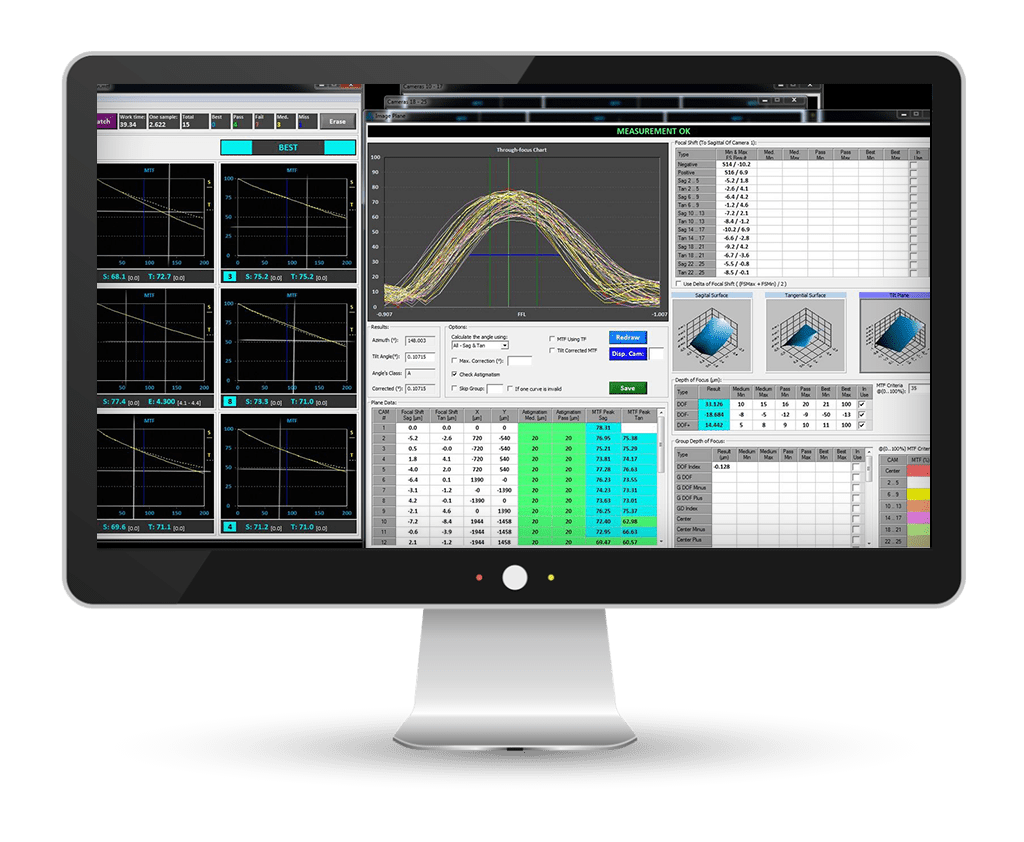

Software
- Guided measurement process
- Pass or fail output by checking MTF and EFL specifications
- Measurement parameter and specifications saved in different configuration files; allows easy change between different samples
- Live images of all telescopes / Live MTF curves on all telescopes (sagittal and tangential)
- Scripting language for customer specific workflow / customer specific measurement process
- Measurement protocol in pdf and MS Excel
- Database storage of sample types, measurement results and pass/fail criteria
MTF vs. rotation angle:
- Live graph for quick overview by rotating the lens manually
- Motorized rotation with real time graph
- Automatic movement of telescope and sample rotation to show MTF max and min
- MTF live view during lens element alignment
- Manual / motorized sample rotation to check success
- EFL measurement
