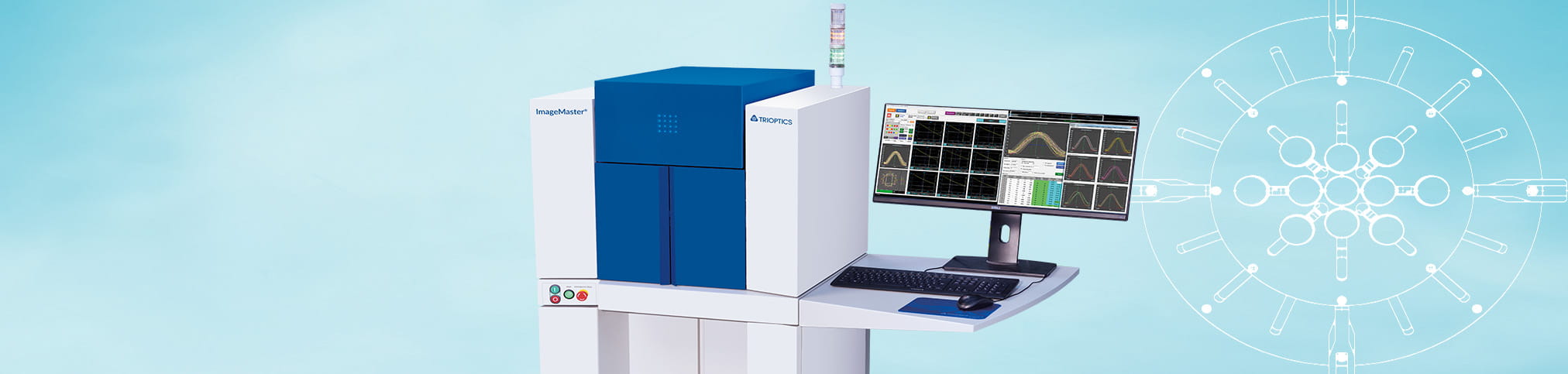

ImageMaster® PRO
Image quality and MTF tester for large series production
Speed
Accuracy
Reliability
Products

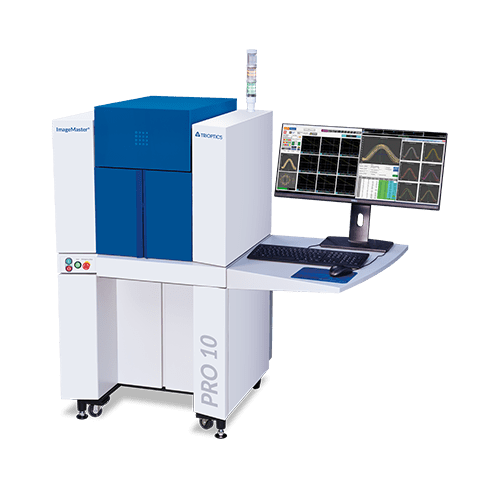

ImageMaster® PRO 10
MTF testing with outstanding speed and accuracy
ImageMaster® PRO 10 enables customers to significantly increase their yield. It is the fastest and most accurate MTF measurement system on the market for qualifying smartphone and other miniature lenses:
- Measurement accuracy of 0.8 % MTF on-axis and 1.5 % MTF off-axis
- Measurement time of 1.3 seconds per sample (2700 UPH)
- Up to 53 measurement points in 27 field positions (cameras)
- Maximum Field of View 215° (optional)
More information
- Measurement traceable to international standards
- Cleanroom compatible

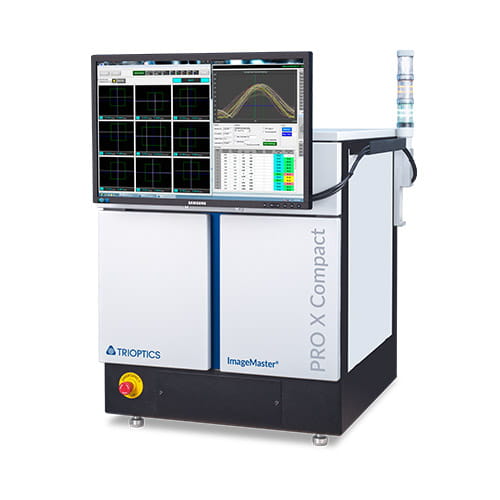

ImageMaster® PRO X Compact
MTF industry standard meets compact design
With the ImageMaster® PRO X Compact, we offer our customers the best price-performance ratio. The compact production tester is more precise, faster and more cost-effective than its predecessor.
- Measurement accuracy of 1.0 % MTF on-axis and 2.0 % MTF off-axis
- Measurement time of 1.5 seconds per sample (2400 UPH)
- Up to 49 measurement points in 25 field positions (cameras)
- Maximum Field of View 215° (optional)
- Table-top device
More information
- Measurement traceable to international standards
- Cleanroom compatible

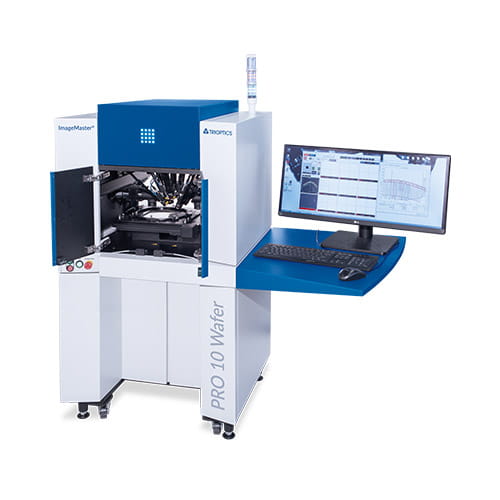

ImageMaster® PRO 10 Wafer
Image quality measurement of wafer level optics
The Image Master® PRO 10 Wafer has been designed to meet the requirements of quality assurance within the production of the new generation of wafer level objective lenses.
- Measurement accuracy of 0.8 % MTF on-axis and 1.5 % MTF off-axis
- Measurement time of 1.3 seconds per sample (2700 UPH)
- Wafer bow and high precision FFL measurement
- Wafer size: up to 8” / 200 mm (rectangular or circular)
More information
- Tilt correction function (bow compensation)
- Easy loading due to kinematic mount and wafer rotation and shift adjustment tool
- Measurement traceable to international standards
- Cleanroom compatible

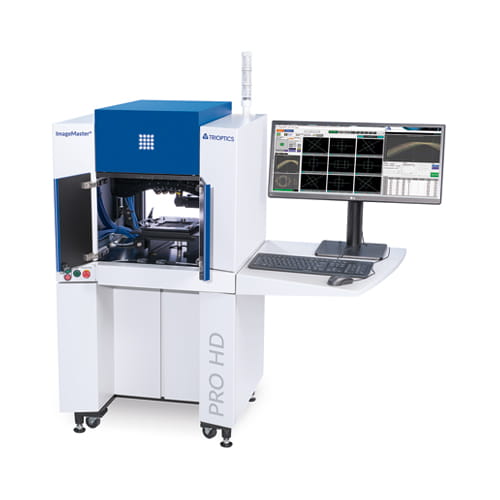

ImageMaster® PRO HD
MTF testing of high-quality smartphone lenses
ImageMaster® PRO HD enables the measurement of state-of-the-art optics (e.g. free-form lenses) for high-resolution photography with smartphones:
- Measurement accuracy of 0.8 % MTF on-axis and 1.5 % MTF off-axis
- Measurement time of 1.8 seconds per sample (2000 UPH)
- Up to 85 measurement points in 43 field positions (cameras)
More information
- No more local performance drops due to complete field (FOV) coverage. Lenses with quality weaknesses are detected at an early stage
- New dome type with fixed camera positions
- Plug and Play Dome: easy change of the dome for different DUTs
- Measurement traceable to international standards
- Cleanroom compatible

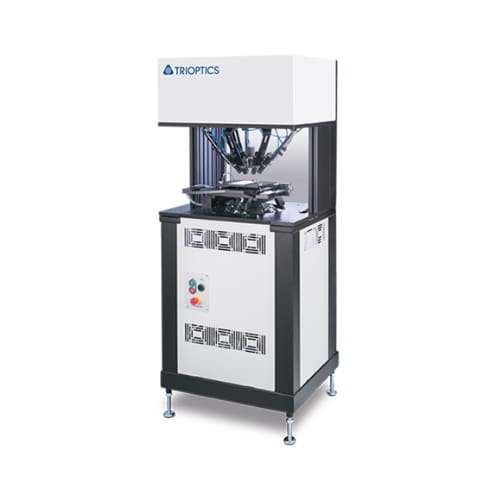

ImageMaster® PRO Display
Image quality measurement of smartphone and tablet displays
MTF testing with the ImageMaster® PRO Display for the under-display camera technology. Precisely determine the influence of the display glass on the image quality:
- Measurement accuracy of 3.0 % MTF on-axis and 3.0 % MTF off-axis
- Measurement time of 1.0 seconds per sample (one shot)
- MTF characterization in mass production of smartphone and tablet displays
More information
- Sample dimensions up to 11“diagonal of the display (tablets with 12“ and 13“ on request)
- Open design enables easy integration in automated production lines
- Measurement traceable to international standards
- Cleanroom compatible

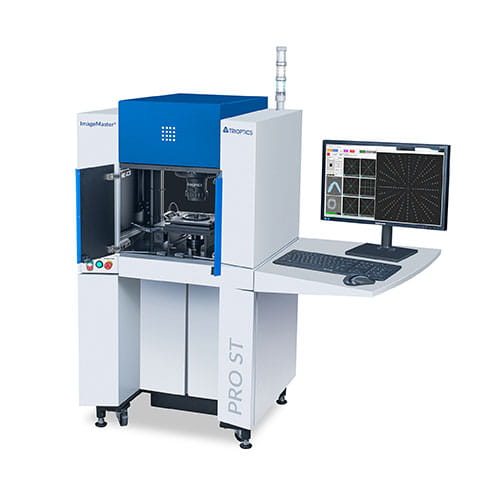

ImageMaster® PRO ST
Image quality measurement of smartphone telephoto lenses
The ImageMaster® PRO ST is our MTF measurement device specific for smartphone telephoto lenses with long EFL range typically employed in optical zoom application. The instrument is ready for mass production and enables MTF testing with high measurement point density for long EFL samples at a narrow FOV.
- Use of a single telescope instead of multiple telescope setup for highest possible measurement point density across the complete sample FOV, but also the highest measurement setup flexibility
- EFL of the telescope is ~100 mm. Samples with focal lengths from 10 – 35 mm can be measured
- Optimized for narrow FOV samples
- Single telescope approach for highest possible measurement point density across the FOV
More information
- High focal shift control (image plane curvature)
- High measurement point density with free choice of measurement point positions
- Up to 200 virtual cameras can be applied and replace real single cameras
- Designed for NIR measurements

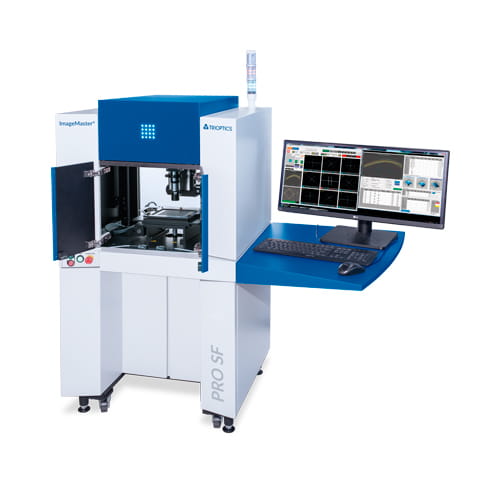

ImageMaster® PRO SF
MTF testing of short finite distances
The ImageMaster® PRO SF is qualified for applications such as FOD (Finger-on-Display), endoscope optics, swallowable pill cameras or optics for gesture control. The setting of different finite distances makes a flexible and at the same time highly accurate MTF measurement possible.
- Finite distances of up to < 1 mm (< 1 mm – 40 mm)
- Setting of the finite distance with < 5 µm accuracy and < 1 µm resolution
- Large field of view (up to 140° FOV possible after individual clarification)
More information
- Up to 99 measurement points in 50 field positions (virtual cameras)
- Measurement time of 2.0 seconds per scan (depends on sample)
- Measuring frequency up to 350lp/mm
- Wafer variants on request (6“ & 8“ Wafer)
- Measurement traceable to international standards
- Cleanroom compatible
Downloads
Software
MTF-PRO
The software for MTF testing in production
The recognized ImageMaster® PRO software, called MTF-PRO, features increased speed, advanced performance and clearly displayed test results. The optimized MTF algorithms are the result of the continuous improvement and TRIOPTICS´ years of experience in the field of MTF measurement.
Advantages:
- Automatic pass or fail results based on a multitude of freely selectable criteria
- Software enabling real-time images of all cameras
- Individual setting of spatial frequencies for each camera
- Settings to enable focusing curve for on-axis and/or off-axis cameras
- Three security levels: setup files and critical functions are password protected
- Storage of lens and batch data, data analysis via Excel
- Intuitive graphical representation of the measurement data in order to detect lenses out of specification at an early stage
- Polar diagram for displaying MTF symmetry in image field
Upgrades
- Upgrades for field extension: Upgrade from ImageMaster® PRO 10 with 9 cameras to ImageMaster® PRO 10 with up to 27 cameras
- Camera and objective exchange sets for measurement range extensions
- Upgrade finite MTF testing between 20mm and 150mm object distance
- FFL distance sensor
- Barcode reader
- NIR and IR-light source
- Teledome/ Double Teledome
- Finite – Finite plane and sphere from 300 mm to infinity
- Variety of trays
- Additional reticles in kinematic mount
- Option for infinity adjustment
- Spare part kits
