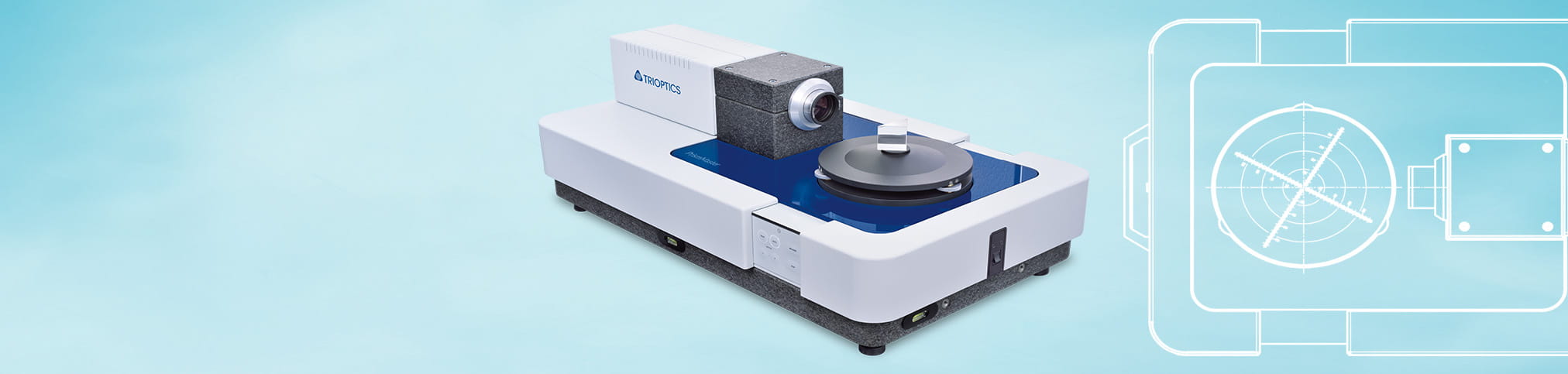

PrismMaster®
Goniometer for high-precision optical angle measurements
Highest Accuracy
Maximum flexibility
Powerful Software
Products

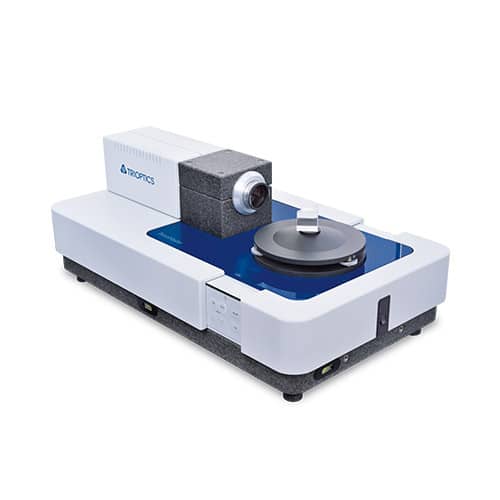

PrismMaster® 300 HR
The world’s most accurate angle measurement device
When accuracy really matters, there is no alternative to the PrismMaster® 300 HR. With an accuracy of 0.25 arc seconds, it remains the world’s most accurate angle measurement device for prisms.
- Outstanding absolute accuracy achieved in a single measurement

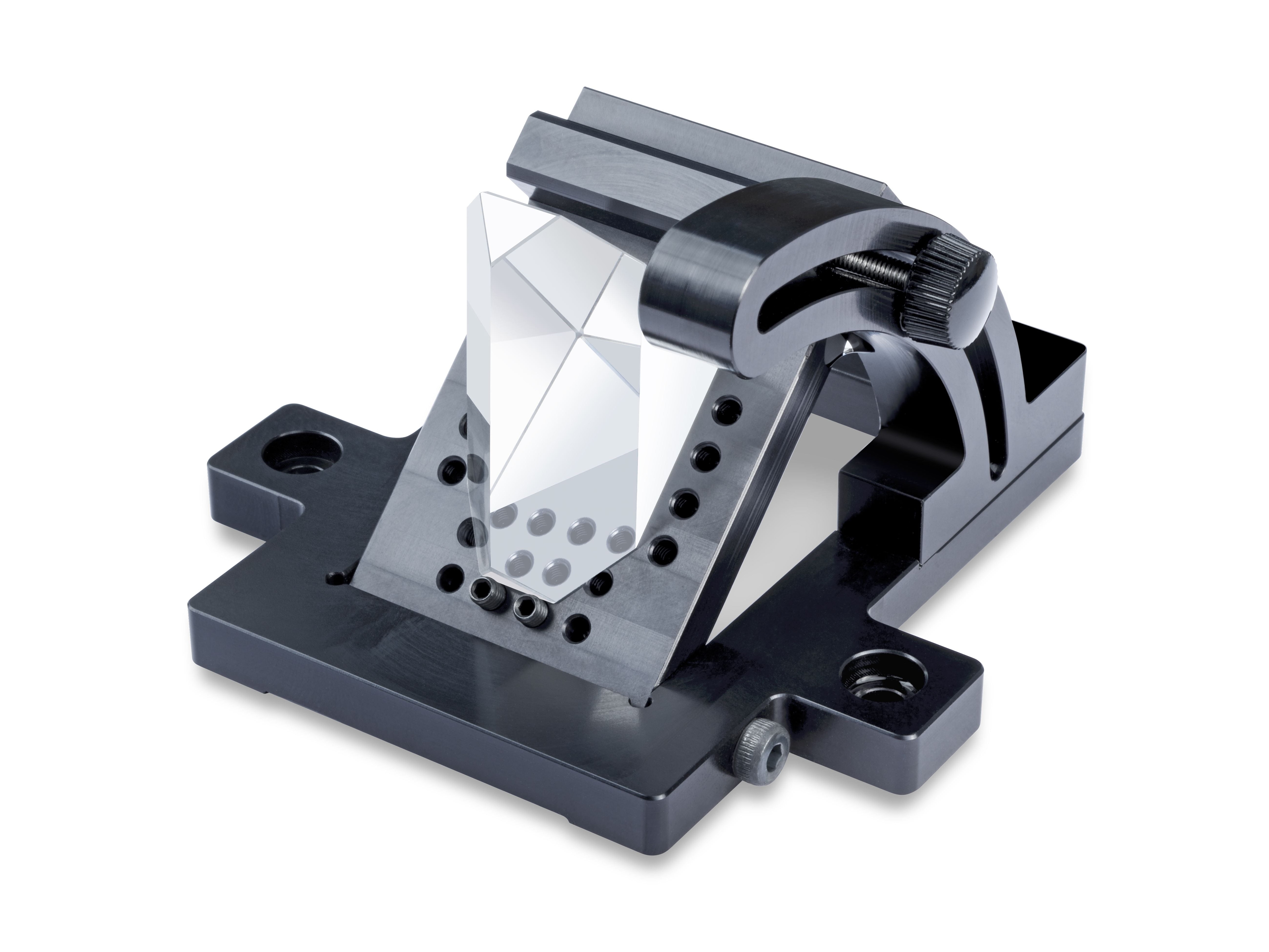

- Measurement of a large variety of samples including microprisms with a minimum sample size of 1.5 mm²
- Ultra-stable and accurate rotary air bearing
More information
- Stable granite frame for all measuring parts.
- Measurement table in three different heights for easy adaption of different sample diameters and heights

PrismMaster® 300
Versatile automatic precision goniometer

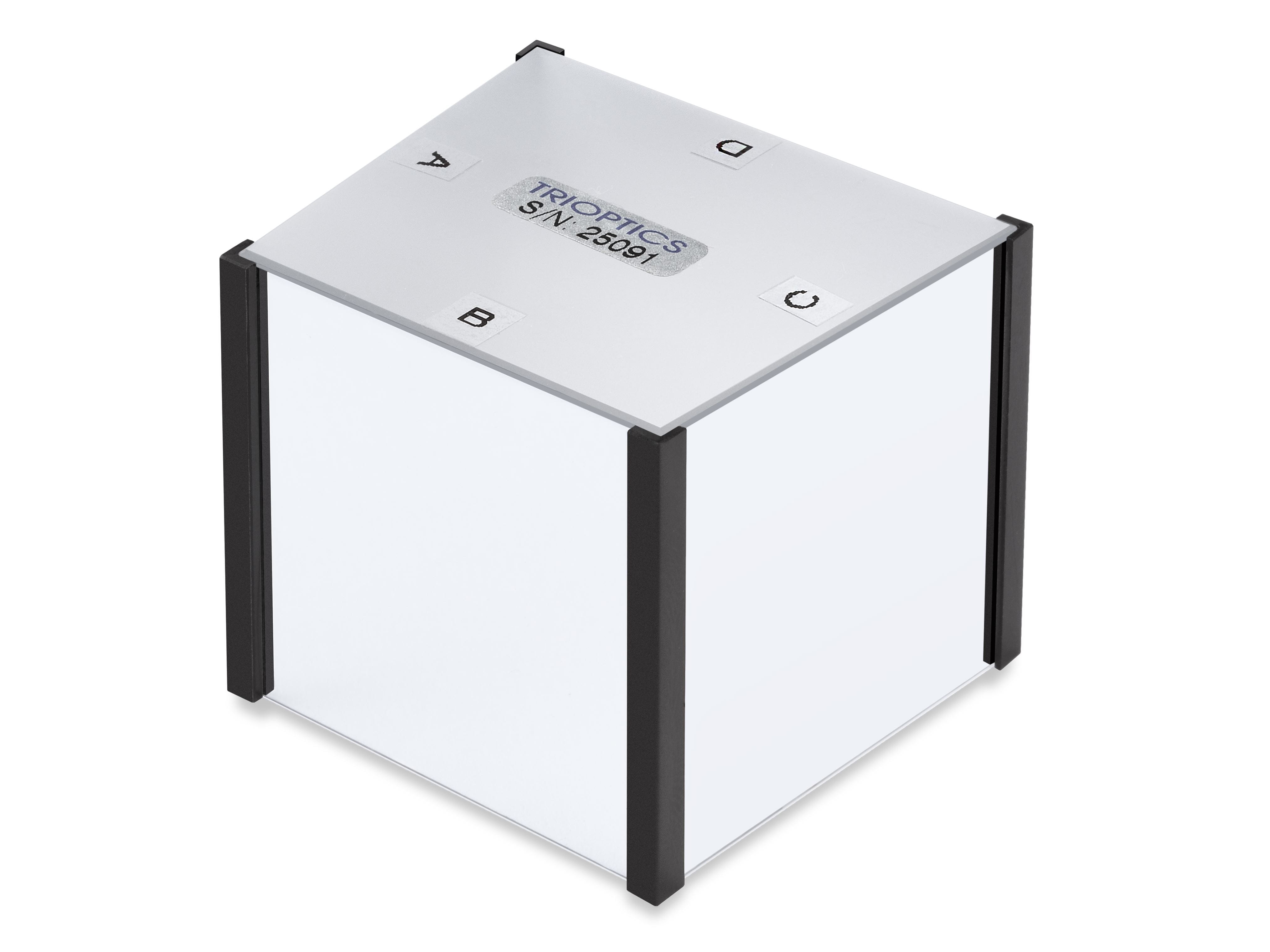

The TRIOPTICS PrismMaster® 300 is a high precision and versatile automatic goniometer for angular measurements of prisms, polygons and wedges. It offersa number of innovative features:
- High accuracy of 0.5 arcseconds
- Stable granite frame for all measuring parts
- Measurement table in three different heights
More information
- Outstanding absolute accuracy achieved in a single measurement
- Measurement of a large variety of samples including microprisms
- Ultra-stable and accurate rotary air bearing

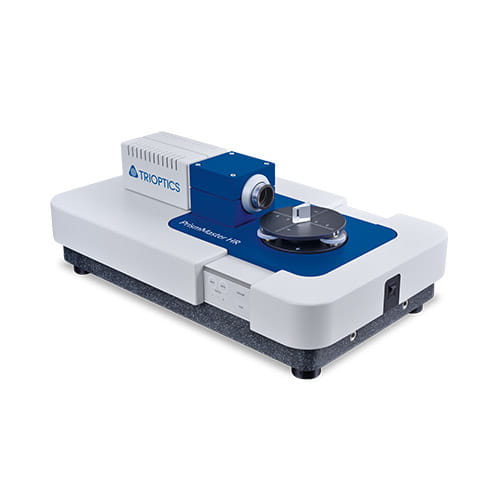

PrismMaster® 150 HR
Economical and compact goniometer
The PrismMaster® 150 HR is characterised by high efficiency and compact dimensions. It is ideal for optical workshops as well as receipt and final inspection in production environments.
- For a large variety of samples including microprisms with a minimum sample size of 1.0 mm²
- Stable granite and steel frame for all measuring parts
- Compact design with full system integration and single-cable connection
More information
- Outstanding absolute accuracy achieved in a single measurement
- Ultra-stable and accurate rotary air bearing

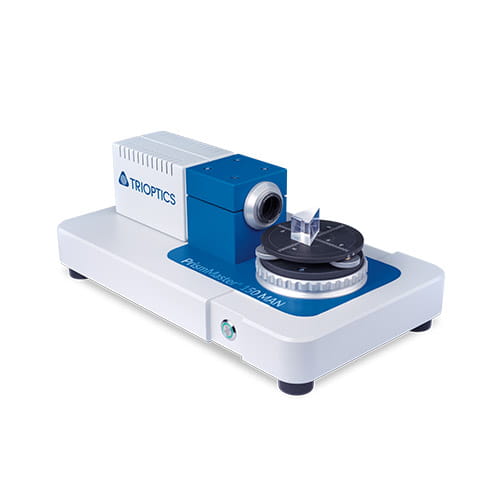

PrismMaster® 150 MAN
Manual, compact goniometer
The PrismMaster® 150 MAN is a manual compact goniometer
- Angular measurements of prisms, polygons and wedges
- Ideal for receipt and final inspection in production environments
- Low installation requirements
More information
- Outstanding absolute accuracy achieved in a single measurement
- No compressed air required due to accurate ball bearing and high performance angular encoder
- Compact design with full system integration and single-cable connection

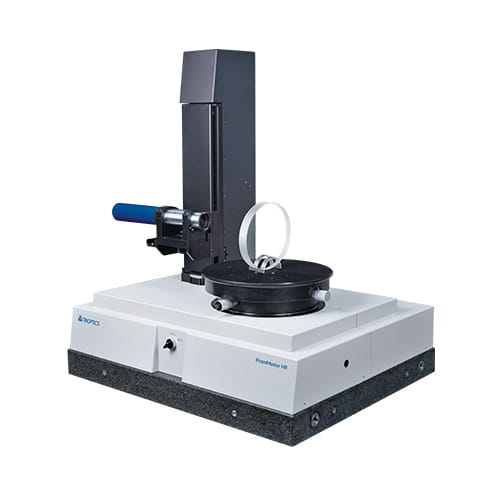

PrismMaster® 300 HR MAX
Automatic goniometer for large samples
The PrismMaster® 300 HR MAX rounds off the product range with a system for measurement of large samples
- Measurement of a large variety of samples
- Samples diameter of up to 420 mm
- Motorized z-stage
More information
- Outstanding absolute accuracy achieved in a single measurement
- Ultra-stable and accurate rotary air bearing

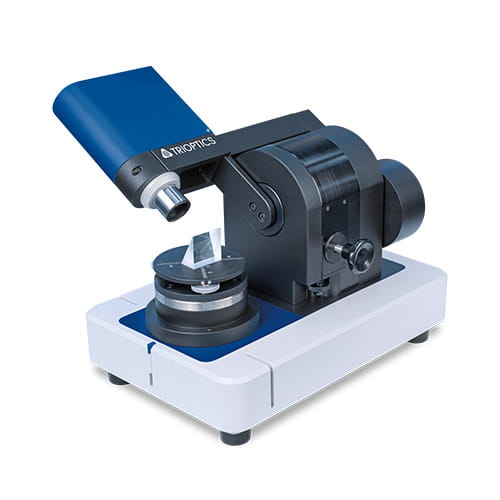

PrismMaster® Flex
Highly flexible goniometer for quality control
The PrismMaster® Flex is a flexible and versatile configurable goniometer with a modular product concept.
- Fast and easy quality control of prisms and plano optics in optics manufacturing
- Three configuration levels: PrismMaster® Flex, 1D and 2D
- Measurement in reflection for outer prism angles and in transmission for deflection angles
More information
- Basic configuration as comparison goniometer for production-related quality testing of prisms and plano optics, measurement times of less than 1 sec per sample
- Configuration levels “1D” and “2D” for angle measurement in absolute values up to measurement of spatial angular relationships

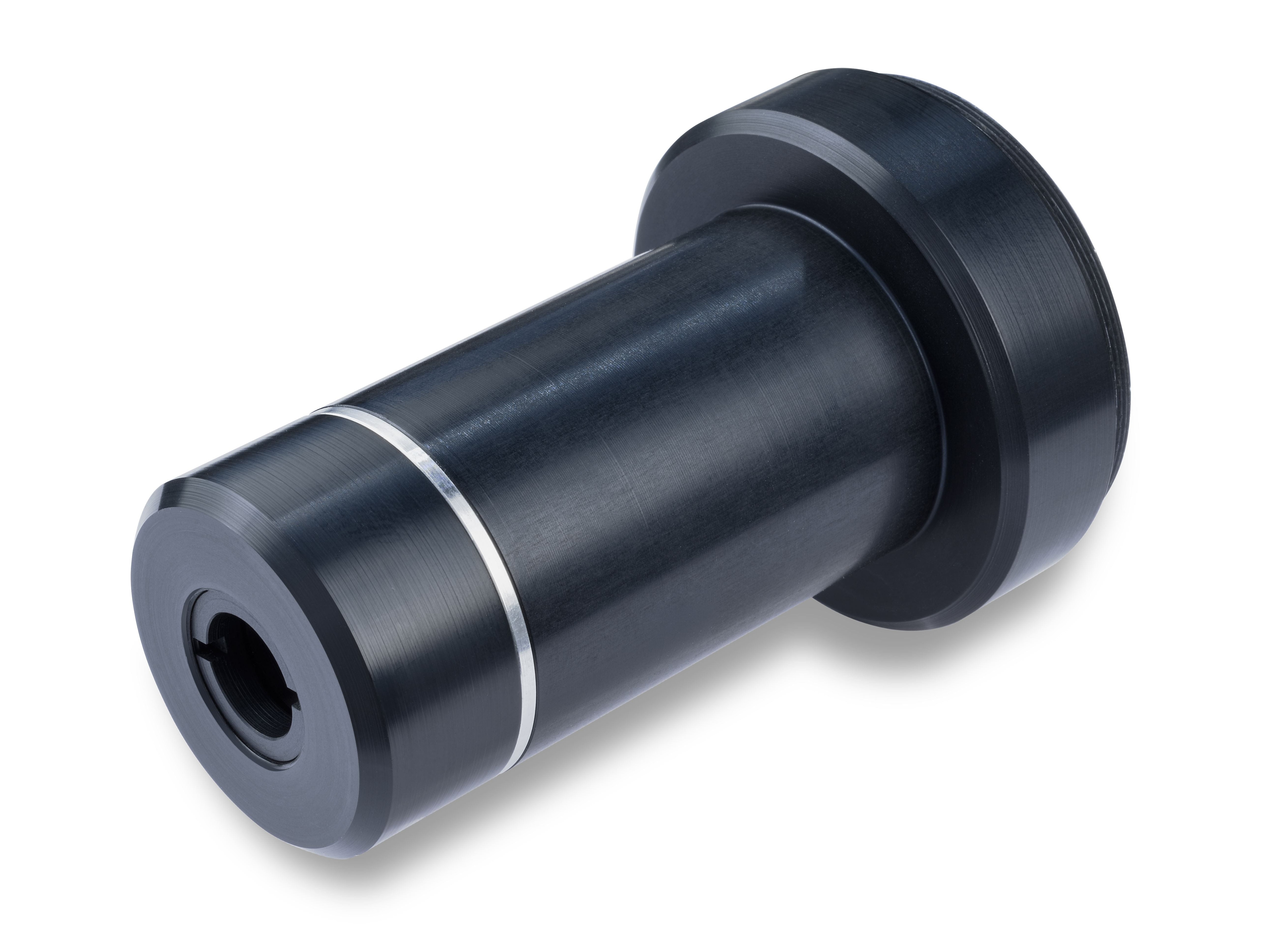

- Up to two additional (auto-)collimators as options for all configuration levels
- Mechanical ball bearing, no compressed air required
Videos

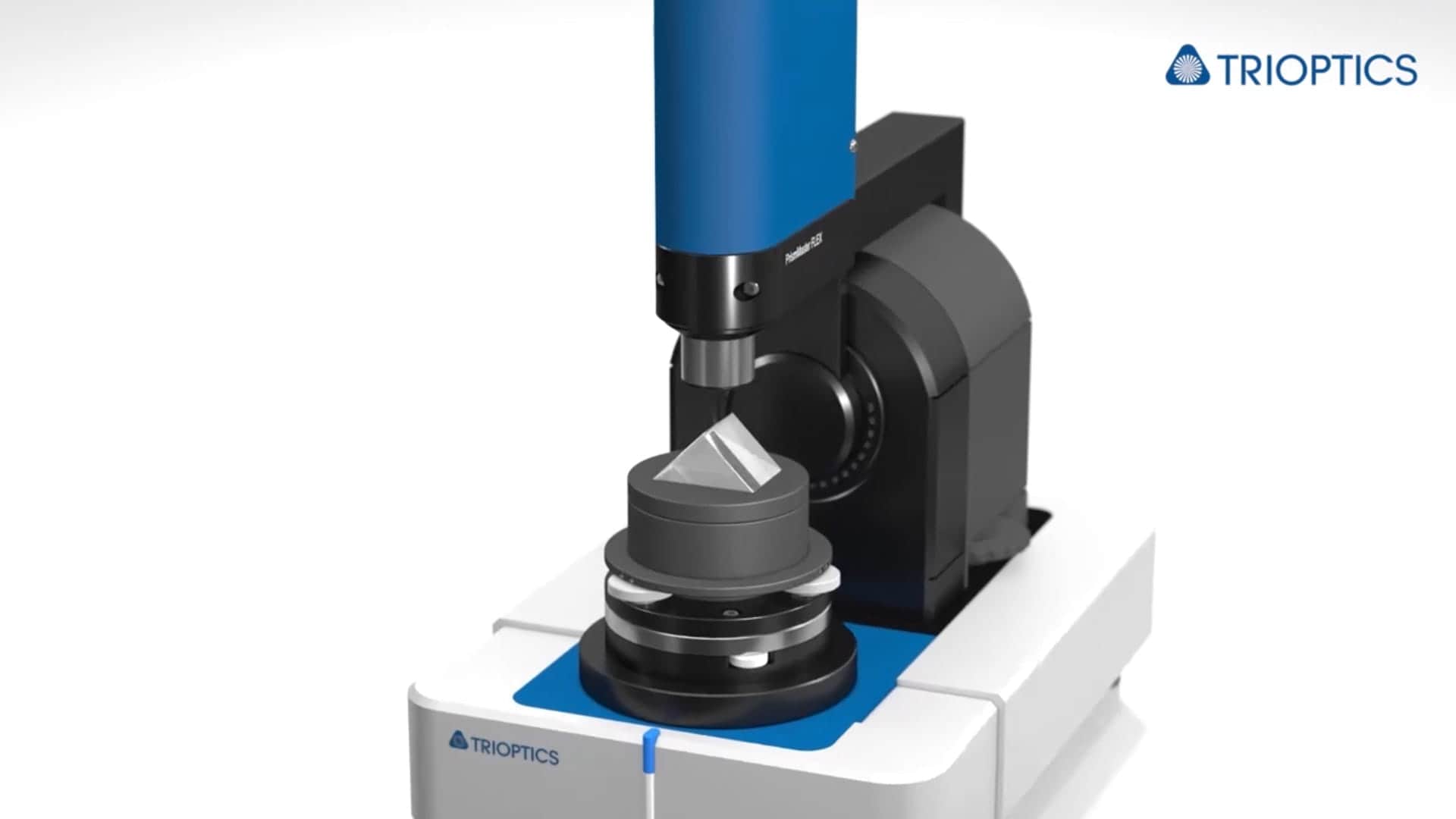

PrismMaster® Flex – Comparison goniometer
Comparison measurement of surface angle with optional additional collimator:
- Comparison measurement of deflection angle
- Absolute measurement of parallelism of plane parallel plates with optional additional autocollimator:
- Comparison measurement on two surfaces

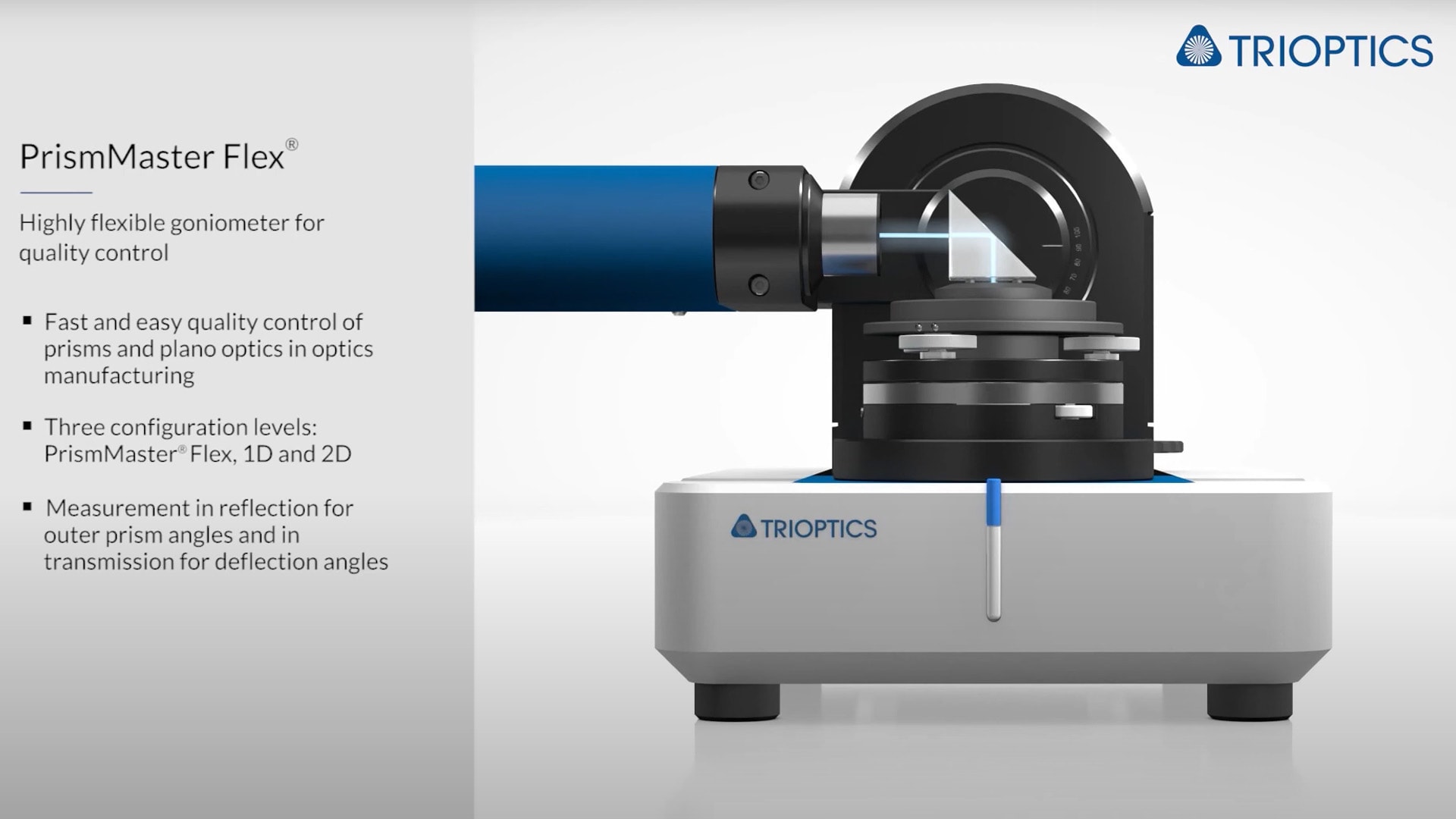

PrismMaster® Flex 1D - Absolut prism angle measurements
An encoder in the swivel arm offers the following measurement possibilities:
- Surface angle
- Tilt angle with optional additional collimator:
- Deflection angle/transmission angle
- Parallelism of plane parallel plates with optional narrowband lightsource
- Refractive index

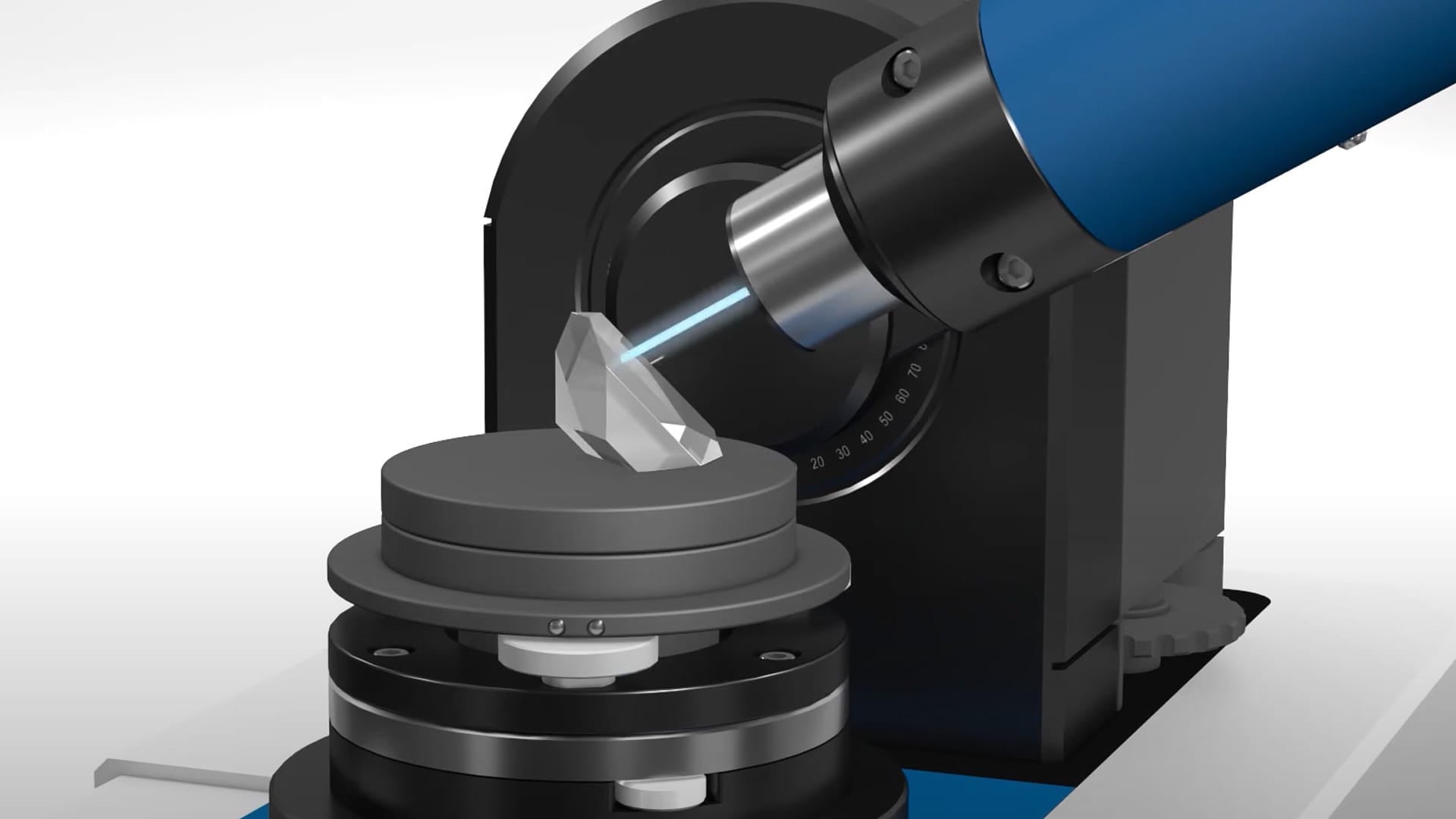

PrismMaster® Flex 2D - Highest flexibility for complex prisms
An additional encoder in the rotary table enables further measurement applications:
- Spatial angular relationships
- Wedge orientation
- Tilt angle of strongly inclined surfaces

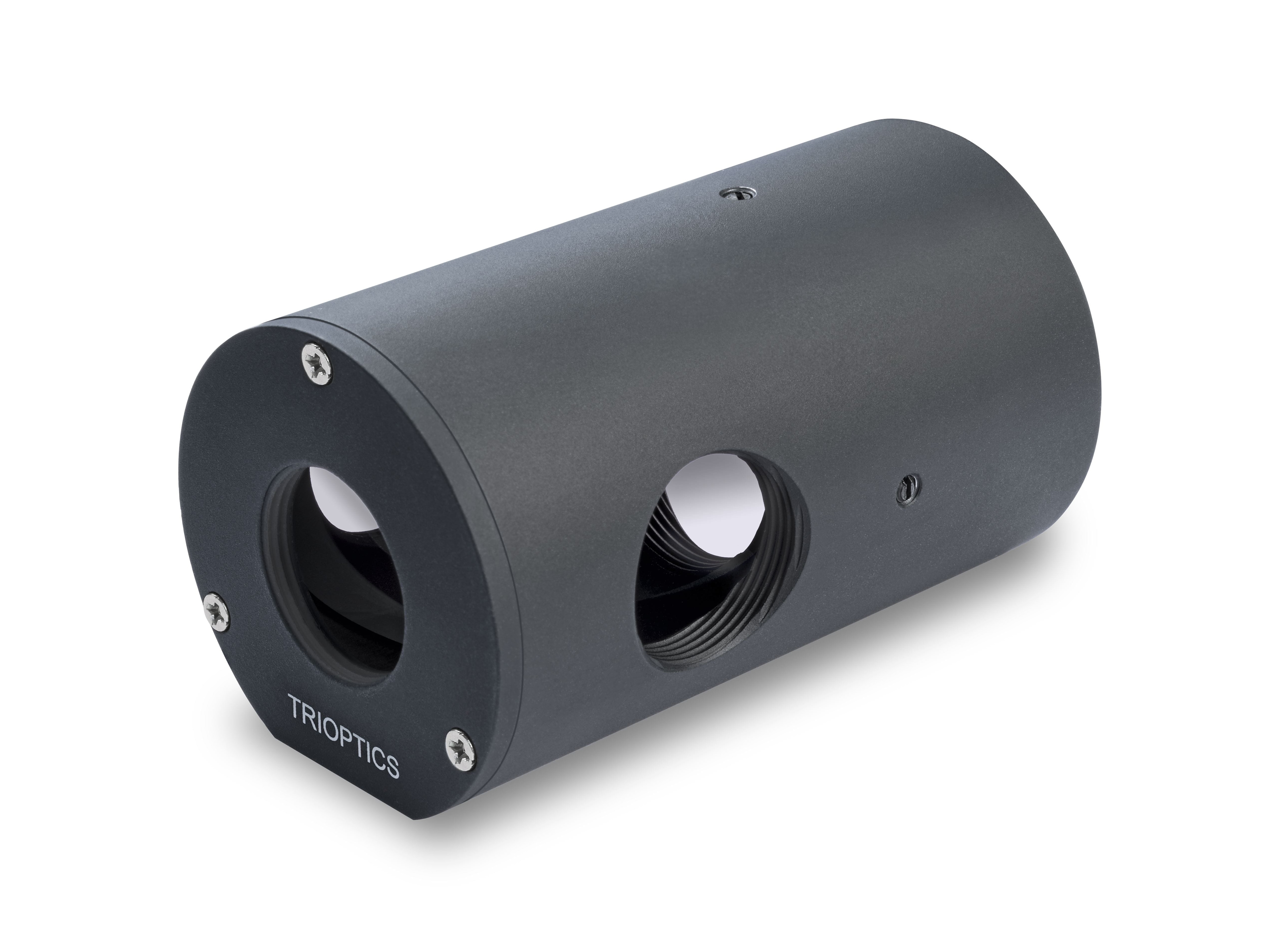

- Pyramidal angle with optional additional collimator and autocollimator:
- Beamsplitter cube
Software

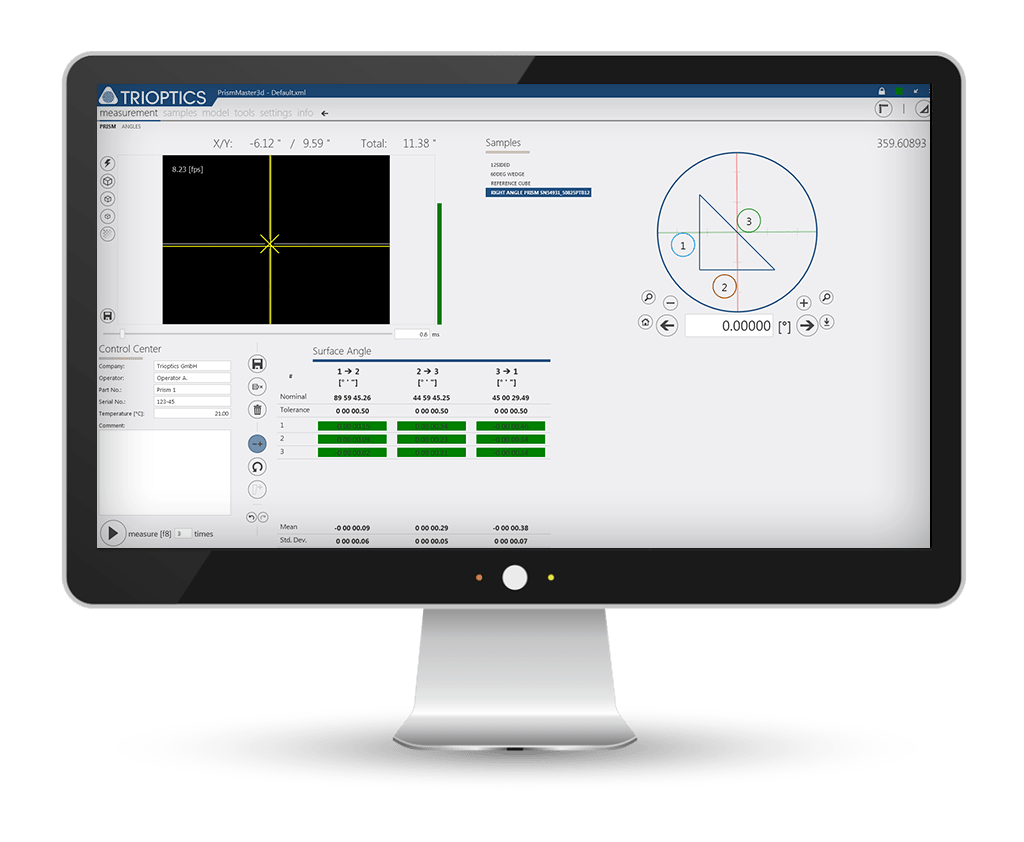

PrismMaster® Software
Measuring Process of a Standard Sample
There is no easier way of achieving an immediate and ultra-accurate angle value of plano-optic components. The new software provides fully automated measurement of standard prisms and polygons:
- Prism Configurator for the easy definition of non-standard and compound prisms

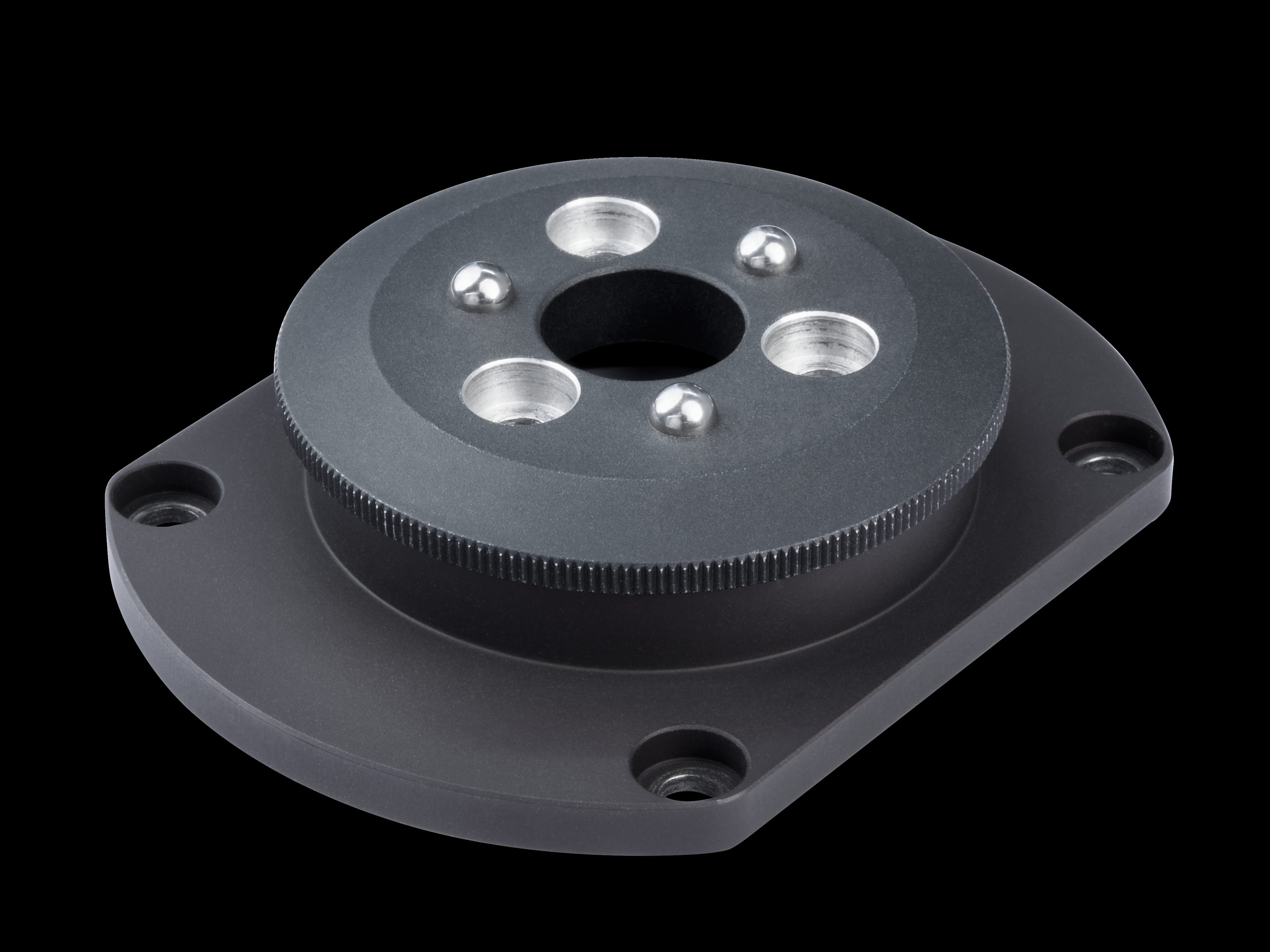

- Software-automated sample tilt compensation (emulated tilt table) for quick and precise measurement of prism angles and pyramidal errors without laborious adjustments
- Input of tolerance ranges and pass/fail classifications
- Evaluation, display and recording of the measurement results according to ISO
